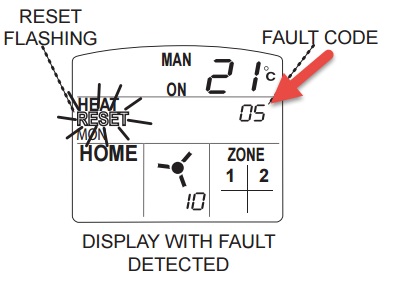

The Braemar controller (Spectrolink & Magiqtouch) thermostat control not only operates your heating system but also monitors and controls all its functions. If the system encounters any issues during operation, the Braemar controller will display an error code symbol (A Spanner) on its screen.
Experiencing issues with your system? Before calling for service, try a simple reboot first. Unplug the unit from the power plug or turn off the main power switch from your switchboard for at least 5 – 10 minutes. This can often resolve minor glitches.
If the problem persists and the error code doesnt go away, Don’t hesitate to call us on 0411 792 669 – 24/7 Emergency On Call
Fault:
PS Low closed at start
Description:
The ICS has detected that the low pressure switch is already closed prior to starting the
combustion fan
Fault:
PS Low failed to close
Description:
After powering the combustion fan the ICS has detected that the low pressure switch failed to close within the required time
Fault:
PS Low opened during run
Description:
The ICS has detected the low pressure switch open during run
Fault:
Thermistor > 70° during run
Description:
The ICS has detected the thermistor temperature above 70° during run
Fault:
Thermistor short or open circuit
Description:
The ICS has detected the thermistor as out of range
Fault:
Flame detected when not required
Description:
The ICS has detected a flame signal when it isn’t required
Fault:
Ignition Failure
Description:
The heater has failed to detect a flame within the specified time period
Fault:
PS Condensate closed at start
Description:
The ICS has detected the condensate pressure switch is already closed before the start cycle
Fault:
Thermistor > 60°C during start
Description:
The ICS has detected that the thermistor is above 60° during its start cycle
Fault:
HX OT1 Open
Description:
The ICS has detected the HX OT1 over temperature circuit has opened
Fault:
Loss of flame signal
Description:
The ICS has detected a loss of flame signal on the flame sensing circuit
Fault:
PS High closed at start
Description:
The ICS has detected the high pressure switch as being already closed during start up
Fault:
PS High failed to close
Description:
The ICS has detected that the high pressure switch has failed to close within the set time limit
Fault:
PS High opened during run
Description:
The ICS has detected the high pressure switch as open while the heater is running
Fault:
Thermistor in cool duct location
Description:
The ICS has had multiple over temperature OT1 resets from the thermistor not telling the ICS to increase fan speed
Fault:
Thermistor in cool duct location
Description:
The ICS has had multiple over temperature OT1 resets from the thermistor not telling the ICS to increase fan speed
Fault:
Condensate detected during run
Description:
The ICS has detected the condensate pressure switch as open during run
Fault:
Condensate detected during start
Description:
The ICS has detected condensate in the heat exchanger drain pan during start cycle
Fault:
HX OT2 Open
Description:
The ICS has detected the secondary over temperature circuit as being open. It will cut power to the gas valve and increase fan to maximum speed
Fault:
Flame roll-out detected during start
Description:
The ICS has detected a flame roll out condition during the startup cycle
Fault:
Flame roll-out detected during run
Description:
The ICS has detected a flame roll out condition during the run cycle
Fault:
Supply voltage out of range
Description:
The ICS has detected the supply voltage or the transformer voltage is out of acceptable limits
Fault:
Room fan not running
Description:
The room fan hasn’t reached 200rpm within the first 10 seconds of starting
Fault:
Room fan running backwards
Description:
The motor speed sensor has detected the room fan running backwards
Fault:
Data table FLAG incorrect
Description:
The ICS has found an error in the data tables
Fault:
Loom ID incorrect
Description:
The wiring loom installed does not match the heater model
Fault:
Combustion air pressure detected prior to start
Description:
The ICS has detected air pressure on the pressure sensor before starting its start cycle
Fault:
Combustion air pressure too low at start
Description:
The combustion air sensor is not sensing enough air pressure during the start cycle
Fault:
Gas relay high error
Description:
The ICS has detected and error with the high gas relay
Fault:
Gas relay low error
Description:
The ICS has detected an error with the low gas relay
Fault:
Flame roll out circuit check failed
Description:
The flame roll out has failed its circuit check
Fault:
Flame roll out loom not attached or short circuit to ground
Description:
The ICS has detected that the flame roll out circuit is either disconnect or has a short
circuit
Fault:
Reset button stuck
Description:
The ICS has detected the reset button as being jammed down or stuck closed
Fault:
Gas valve closed during run
Description:
One or both of the ICS gas valve relays opened unexpectedly while the heater was running
Fault:
Combustion air pressure sensor error
Description:
The ICS has detected an error with the air pressure sensor
Fault:
Combustion air pressure too low during run
Description:
The ICS pressure sensor has lost pressure during run
Fault:
Gas valve modulating coil outside range
Description:
The ICS has detected the modulating coil on the gas valve is outside of the allowed range
Fault:
Combustion pressure sensor communication error
Description:
The ICS has detected a communication error with the air pressure sensor
Fault:
Micro flame mismatch
Description:
The ICS has detected a mismatch between the microprocessors
Fault:
5 lockouts within 15 minutes
Description:
The ICS has locked out 5 times within a 15 minute time frame
Fault:
MagIQtouch controller communication loss
Description:
The ICS has lost communication to the MagIQtouch control after 5-10s it will turn off the call
for heat
Fault:
Micro 2 error found
Description:
The ICS has detected an error on the second microprocessor
Fault:
System check memory error
Description:
The ICS had detected an error while checking the system memory
Faut:
Voltage Rail Error
Description:
The ICS has detected an error on the voltage rail
Fault:
ICS Fault
Description:
The ICS has detected an internal error
Fault:
Micro one reading 1 at start up
Description:
The ICS has detected a flame sense reading above its threshold
Fault:
Micro one reading 2 at start up
Description:
The ICS has detected a flame sense reading above its threshold
Fault:
ICS flame circuit error – Micro 2
Description:
The ICS has detected an error with the second microprocessor on start up
Fault:
Ripple value too high at start up
Description:
The ICS has detected a flame sense reading above its threshold
Fault:
Micro one reading 1 after pre purge
Description:
The ICS has detected a flame sense reading above its threshold
Fault Code:
Micro one reading 2 after pre purge
Description:
The ICS has detected a flame sense reading above its threshold
Fault:
ICS flame circuit error – Micro 2
Description:
The ICS has detected an error with the second microprocessor after pre purge
Fault:
Ripple value too high after pre purge
Description:
The ICS has detected a flame sense reading above its threshold
Fault:
Micro one reading 1 during start up
Description:
The ICS has detected a flame sense reading above its threshold
